Track list

• 12 x ST-200 Standard Straight
• 10 x ST-201 Double Straight
• 14 x ST-202 Short Straight
• 15 x ST-203 Special Short Straight
• 10 x ST-225 No2 Radius Standard Curve
• 15 X ST-226 No2 Radius Double Curve
• 6 x ST-227 No2 Radius Half Curve
• 2 x ST-230 No3 Radius Standard Curve
• 7 x ST-231 No3 Radius Double Curve
• 2 x ST-235 Special Curve
• 7 x ST-240 No2 Radius Right-Hand Point
• 5 x ST-241 No2 Radius Left-Hand Point
• 2 x ST-244 Curved Right-Hand Point
• 3 x ST-245 Curved Left-Hand Point
• 4 x ST-250 Short Crossing
• 3 x ST-270 Sleeper Built Buffer Stop
• 3 X ST-273 Power Clip

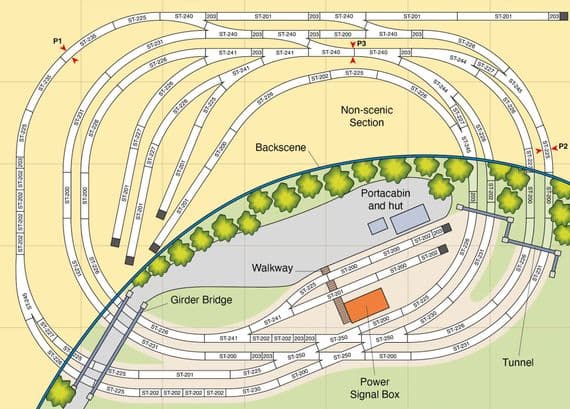

This is quite a complex track plan, but allows for some exciting operation as the trains cross each other on a flat, double-track crossing.

Behind the scenes, the trains can be routed to the scenic section through either of the paths leading to the crossing. There is also a small siding area for additional interest.

Buildings Suggestions

If the setting for this plan is mainly rural, then apart from the tunnel mouths and bridge, there are not many buildings required. However, the layout can also be set in an urban environment, where the trains run in cuttings below a heavily built-up town scene.
