The Scale Model Scenery Servo Animation Starter Kit provides a simple way of adding a 180-degree servo movement to your project without the need for coding or computer wizardry! The Movement Module supplied with the kit is the perfect solution for simple animatronics functions, such as; opening gates, doors, operating points and signals etc.

The board can power and control a single servo, with movement range adjustment built in, along with 3-pin servo connector, and a momentary push button.

At each press of the momentary button, the servo moves to the other end of its travel. The length of travel is determined by adjusting the trimmer potentiometer. The speed of servo movement is fixed and cannot be adjusted.

The board also features solder pads for +5V/GND (power in) and solder pads for attaching a remote push button in parallel with the PCB switch. The button can then be mounted in a convenient location on a custom enclosure to allow for more convenient operation. The remote switch should be momentary, and normally open. The use of a non-momentary switch may result in unpredictable operation.

Additionally, the board features a 5V USB power connector. In operation, a servo can pull more than 500mA, it is important that this board is powered by a suitably rated power supply. Do not attempt to use a laptop or PC to power this board.

The on-board trimmer potentiometer can be adjusted with a small screwdriver. A servo can be attached to the Movement Module via the standard 3-pin servo connector on top of the board.

Important Notes:

• The board features a 5V USB power connector. In operation, a servo can pull more than 500mA, it is important that this board is powered by a suitably rated power supply. Do not attempt to use a laptop or PC to power this board.
• No coding required.

Controller Board Features:

• Power and control a single 180-degree servo without code.
• Set the angle (amount of travel) by adjusting a trimmer potentiometer.
• Each press of the momentary switch causes the servo to move to the other end of its travel.
• Great for animatronics projects for things such as opening and closing mouths/hands/eyes.

Contents:

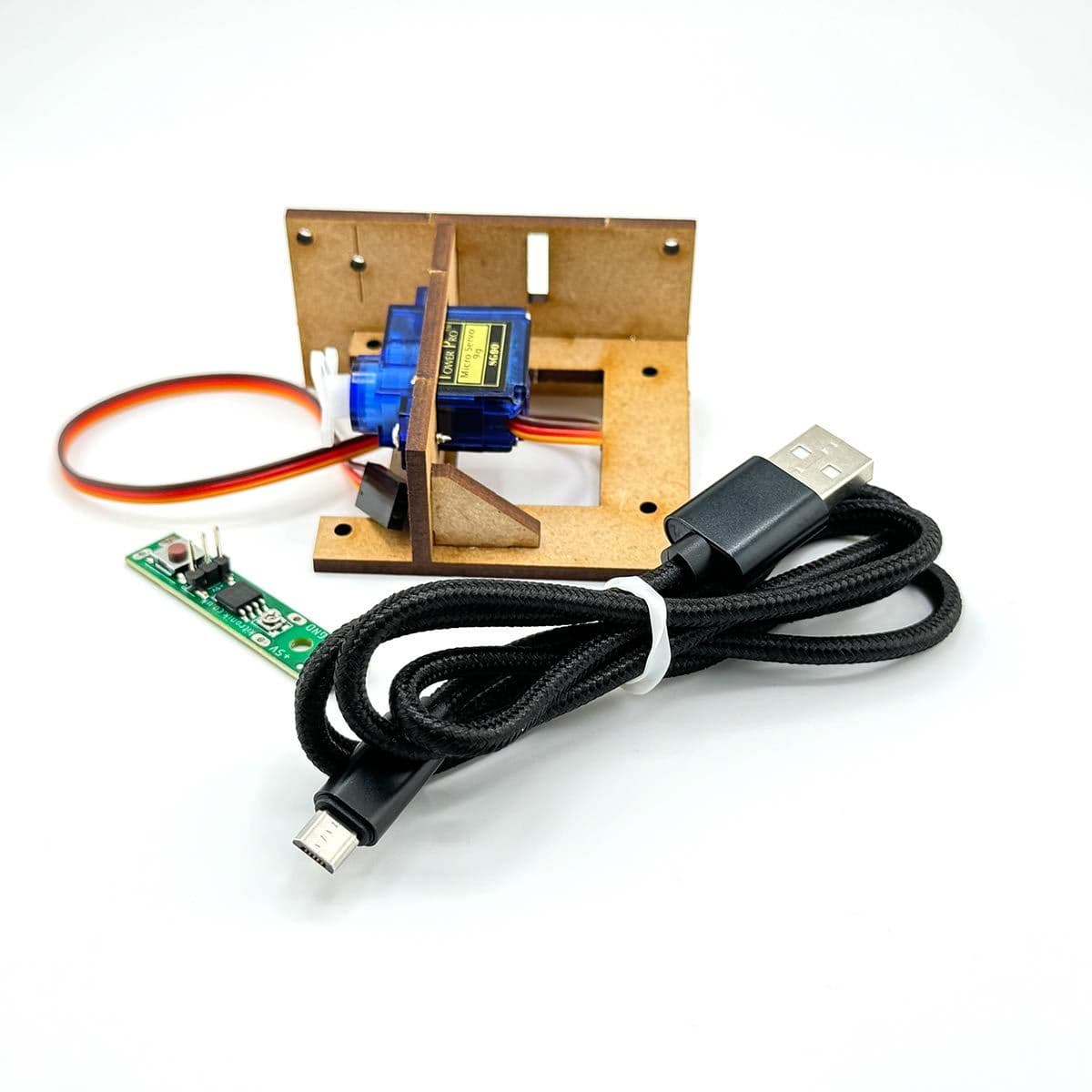

• 1 x Movement Module (Simple Servo Controller)
• 1 x Universal Servo Mount (un-assembled)
• 1 x SG90 Micro Servo, horns & fixings
• 1 x 100cm Micro USB cable

Controller PCB Dimensions:

• Length: 47mm.
• Width: 10mm.
• Height: 10.5mm.

Servo Features:

• High Quality
• Color: As shown
• Size: 2.3 x 1.2 x 2.9 cm.
• Material: Plastic
• The most popular mini servo
• Only weighs 9 gram and gives you a 1.2-1.6 kg/cm torque
• Suitable for beam type robots.
• Cable length 240mm from servo to plug (not including the plug)
• Max Voltage 5 to 6V
