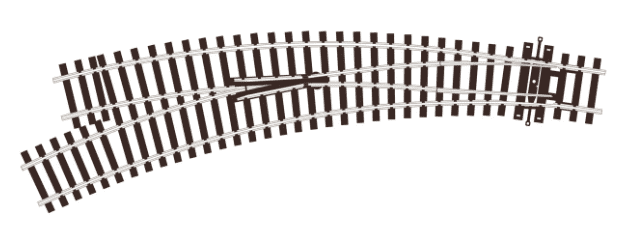

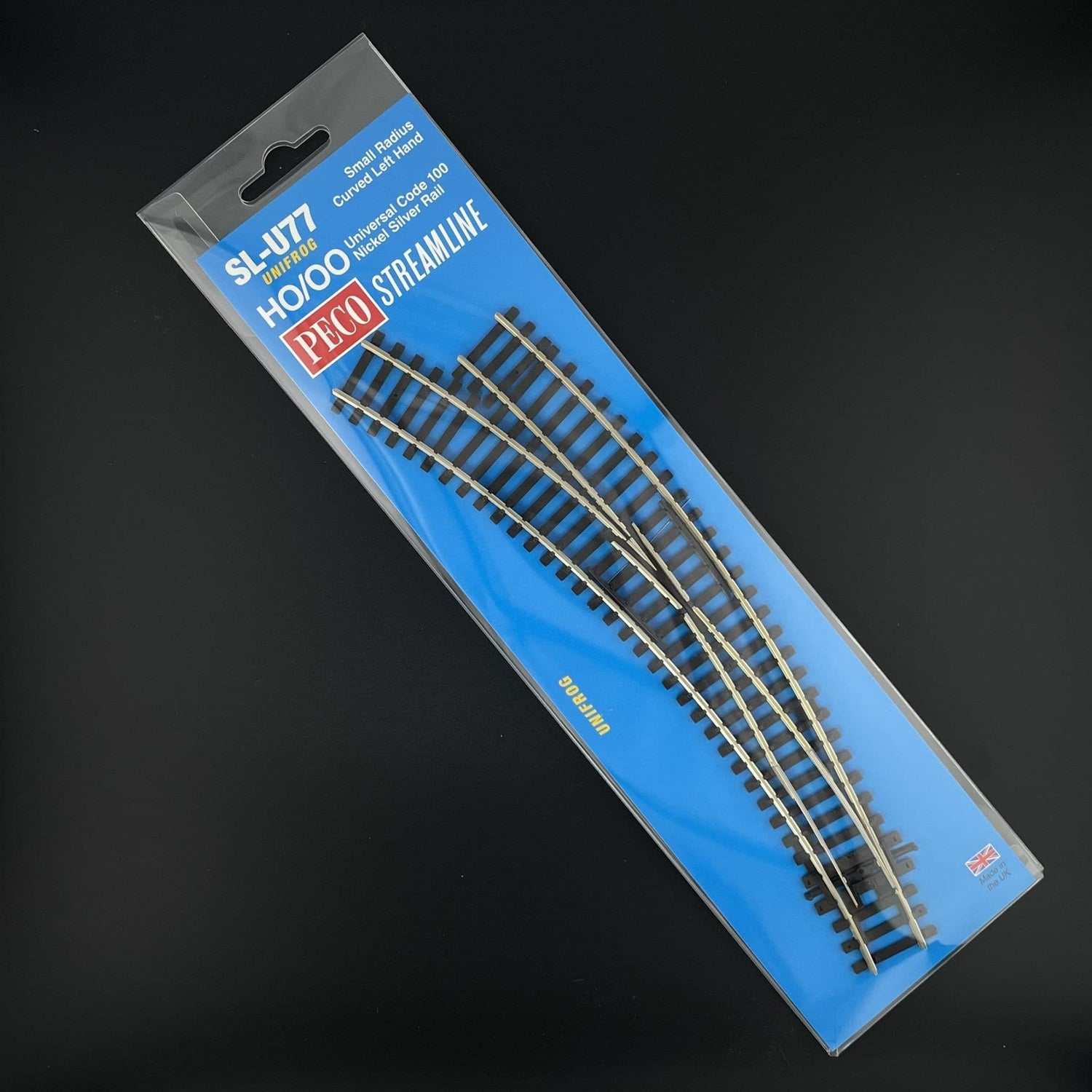

PECO STREAMLINE SL-U77 Curved Point/Turnout, Small Radius, Left Hand

Unlike their predecessor, the Setrack curved point/turnout, these innovative Streamline versions feature a unique 11.25-degree frog angle. This slight deviation from the standard 12-degree angle offers a striking advantageit allows for a snug fit in those critical tight spots. Whether its navigating the bend into a fiddle yard or hugging the contours of your scenic backdrop, this point/turnout is designed to provide optimal access where it's most needed.

The inner radius of just 438mm (17.2 inches) means tighter curves and more efficient use of every inch of space on your layout. When compared to the conventional Streamline curved point/turnout, which sports an inside minimum radius of 762mm (30 inches), the difference is not only evident but also significant.

Don't let the numbers mislead youwhile smaller in radius, these points/turnouts don't fall short on performance. They elegantly marry space efficiency with the smooth operation, ensuring your trains glide through the curves gracefully.

Technical Specifications:

• Length: 168mm
• Radius: 438mm

Conductors & Joiners:

• SL-10 Conducting Rail Joiners: Nickel Silver for PECO Code 100 track

• SL-11 Insulated Rail Joiners for PECO Code 100 track

Fixings:

• SL-14 Track Fixing Pins: Chemically blackened mild steel, designed for discreet track attachment
